Qotom Q51551UT 4x 10GbE and 6x 2.5GbE Mini PC Review

The Qotom Q51551UT mini PC stands out in the crowded mini-PC market with its exceptional networking capabilities. Featuring eight RJ45 Ethernet ports plus two SFP+ 10G ports, this device appears at first glance like a specialized networking appliance, yet it also offers multiple display outputs and robust processing power, making it suitable for various applications from virtualization platforms to edge computing.

Network Connectivity Design

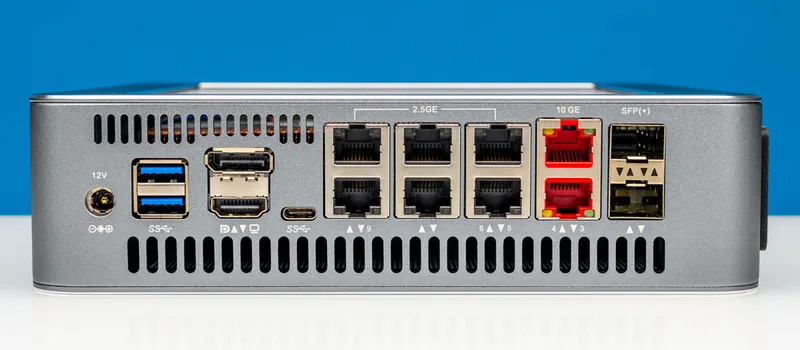

What makes the Q51551UT particularly interesting is that it has no "slow" Ethernet interfaces. Every port operates at minimum 2.5GbE, with a subset supporting 10GbE. The rear panel houses two SFP+ ports driven by an Intel X710-BM2 controller (Fortville), which, though over a decade old, remains a reliable networking platform supporting both 1GbE and 10GbE modules.

Adjacent to these are two distinctive red RJ45 jacks indicating 10GbE connectivity, powered by Intel's older X540-AT2 (Twinville) controller. This 16-year-old design predates the NBASE-T standard, meaning these ports don't support intermediate 2.5Gbps or 5Gbps speeds—a somewhat inflexible choice for a modern device.

Performance and Physical Design

The remaining six RJ45 ports utilize Intel's modern I226-V controller, providing up to 2.5Gbps connectivity. However, Qotom's specifications reveal bandwidth limitations: each 2.5GbE port has a Gen2 x1 connection, and two of the 10G ports share 12Gbps of upstream bandwidth, potentially limiting simultaneous high-speed usage.

Physically, the Q51551UT employs active cooling with a low-profile blower fan and ventilation on most sides except the front. The front panel includes five USB-A ports (one high-speed, four USB 2.0), an RJ45-form-factor RS-232 serial port, status LEDs, and a ringed power button. The system is designed to sit on its side unless mounted via VESA bracket.

Versatile Applications

Beyond networking, the Q51551UT offers display connectivity through HDMI 2.0 and DisplayPort 1.4 outputs, both attached to the Core Ultra 5 125H's integrated GPU capable of driving 4K displays. This makes it suitable for digital signage applications while also providing Intel iGPU with Quick Sync for video processing tasks.

The system ships with a 120W external power adapter (note: while the case is labeled "12V", it requires 19V). Its combination of processing power, extensive networking options, and display outputs makes it particularly well-suited for software firewall implementations, virtualization platforms when running Proxmox VE, and other networking-centric workloads requiring multiple high-speed connections.
